Ref. No.:CUTTOLENGTH191001
YEAR:1995
Brand:FIMI, SIEMENS
Qty:1 Second-hand cut-to-length line - Dismantled & in storage

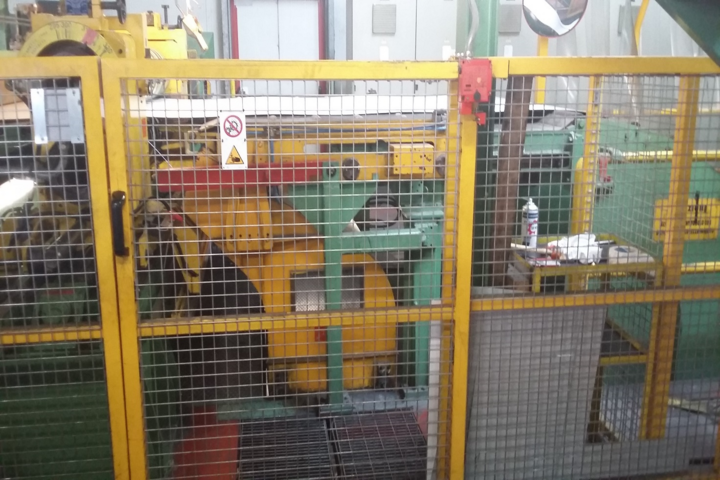

Qty. 1 Second-hand cut-to-length line - dismantled and in storage
Mfc.: FIMI, SSW, Type: Multiblanks line 1850 x 2.5 mm, Built: 1995, Dismantled and in storage
Strip width: 300 – 1,850 mm, Thickness: 0.3 – 2.5 mm, Length: 300 - 8,000 mm
Line speed: 85 m/min., Coil weight: 22.5 T, Operation: left to right
Equipped with spare parts, flattening bank, spare blades for rotating shears & circular shears

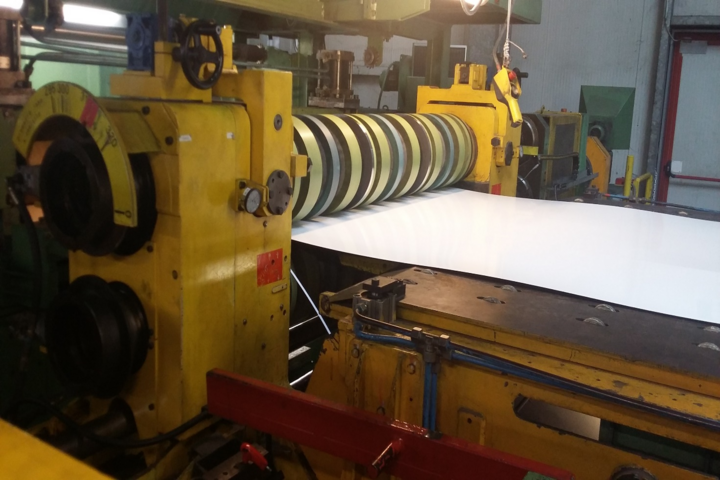

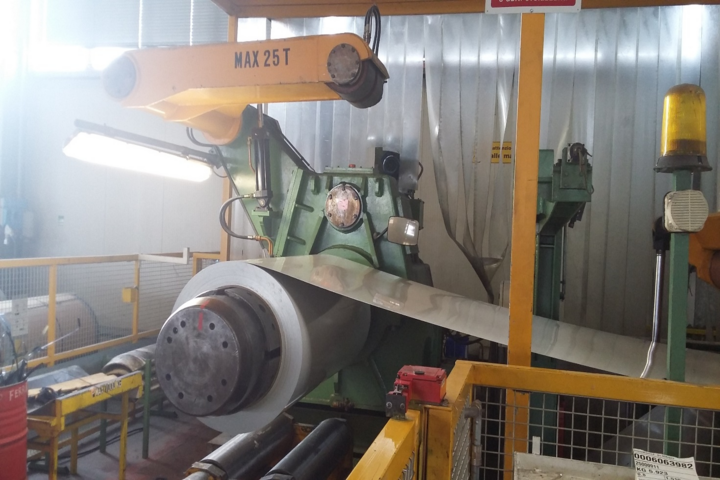

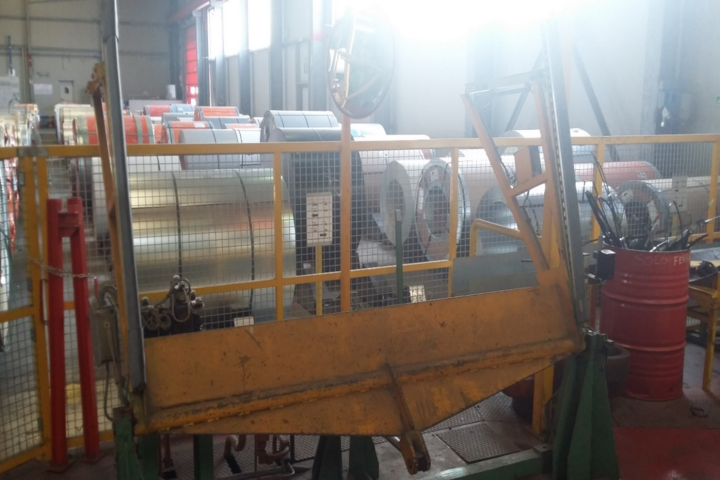

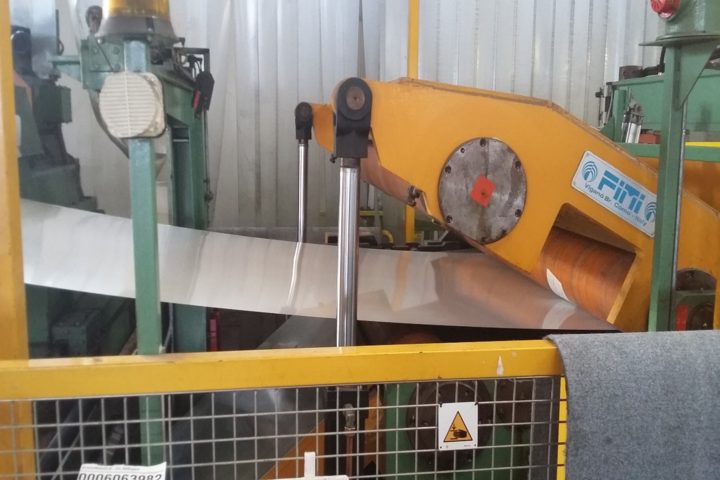

Scope of supply: 1. Uncoiler 25 ton, 2. Coil centering, 3. 25 ton unwind rod, 4. Wire guide photocell,

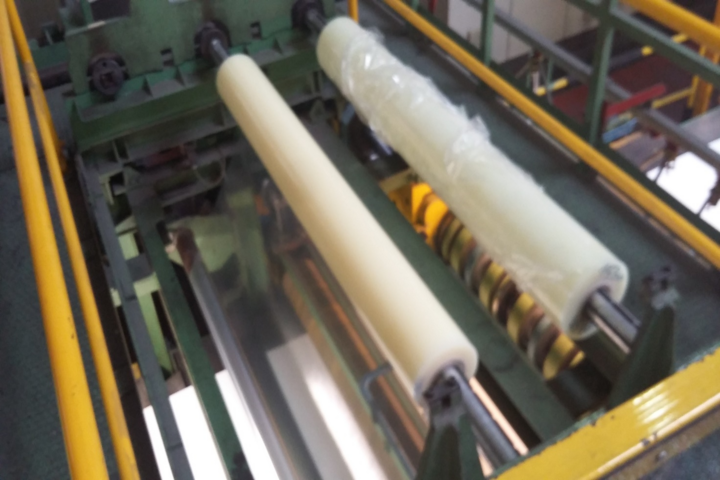

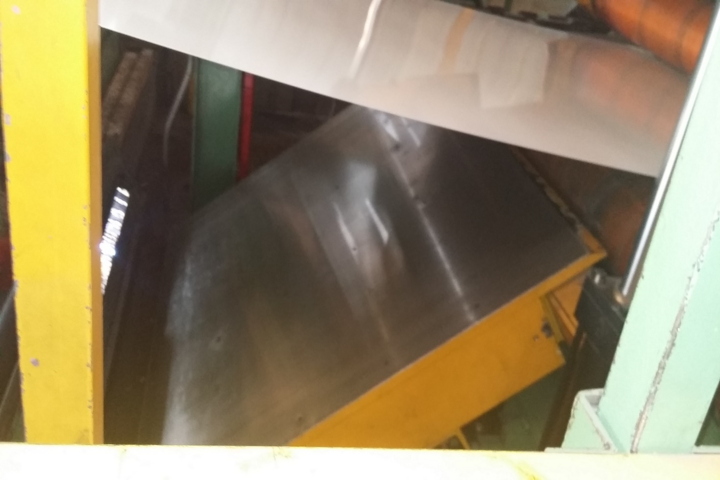

5. Table introduction, 6. Introduction unit, 7. Cutter flying shear, 8. 6° FIMI straightener, 9. Film applicator,

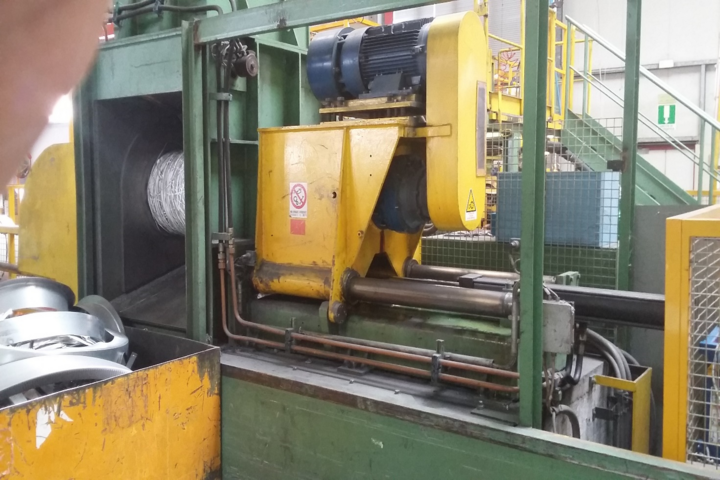

10. Circular shear, 11. Deceleration / Connection table, 12. Waste wrapper, 13. Passage conveyor,
14. Measurement wheel, 15. Unique rotary shear, 16. First evacuation conveyor, 17. Second conveyor for evacuation,
18. Scrap unit, 19. Autom. car for pallet insertion, 20. Stacker with palette and air vent,
21. Evacuation chain with weight and semi-automatic strapping machine, 22. Second evacuation chain,
23. Hydraulic units, 24. Electrical panels, 25. Control panels
Technical characteristics of the line:
General
Line length: 70 m, Line width: 15 m, running from upper side
PLC – Control: Mfc.: Siemens, Type: S5-115
Coil (entry): Max weight: 22.5 Ton, ID 508, 610 mm, OD 900 – 1,900 mm
Motor power: 51 kW, Edge guide system, No. of measured edges: 1
Capacity of width min.: 400 mm, Capacity of width max: 1,850 mm

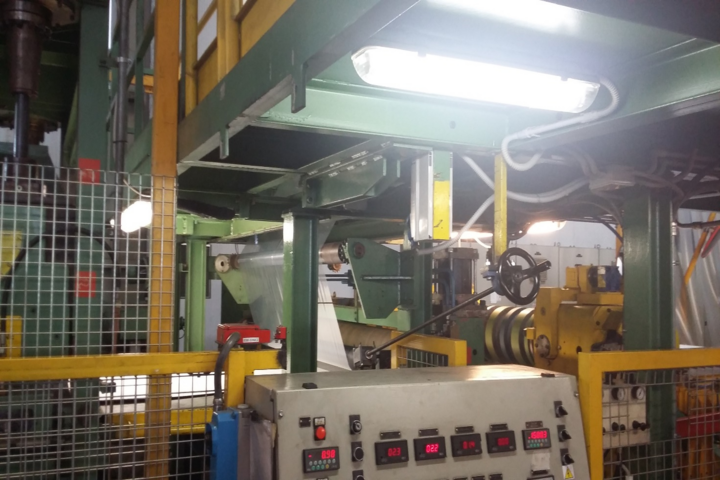

Multiblanks
Max. number of cuts: 3, Min./Max. sheet width: 300 – 600 mm +/- 0.5 mm
Min./Max. sheet length: 400 - 4,000 mm +/- 0.25 mm
Coil weight: entry max.: 22.5 Ton, exit max.: 15 Ton

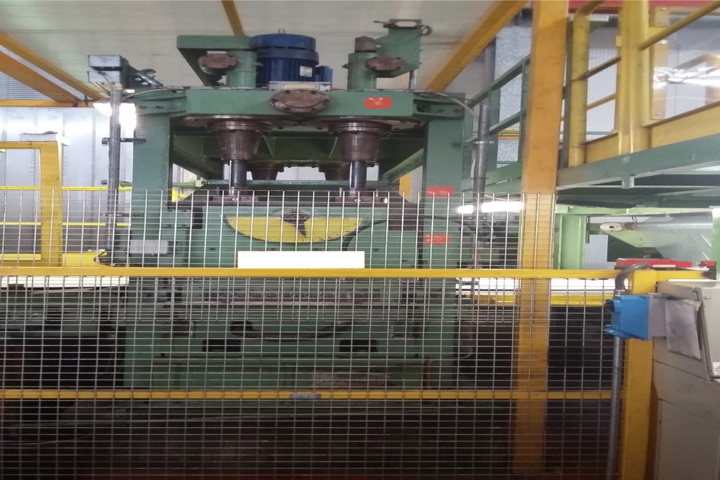

Straightener 1, Mfc.: Fimi, First level rolls – dia.: 36 mm
Number of first level rolls: 23, Higher intermediate rolls, Lower intermediate rolls
back-up roll dia.: 74 mm, no. of back-up rolls: 7
Re (MPa): min. pressure setting: 200, Re (MPa) max. pressue setting: 450
Rm (MPa) min. breaking pressure: 280, Rm (MPa) max. breaking pressure: 600
Discharge bank, Manual spare bank
Motor power lower up: 2 kW, Motor power screw down: 2.5 kW, Motor power drive: 184 kW

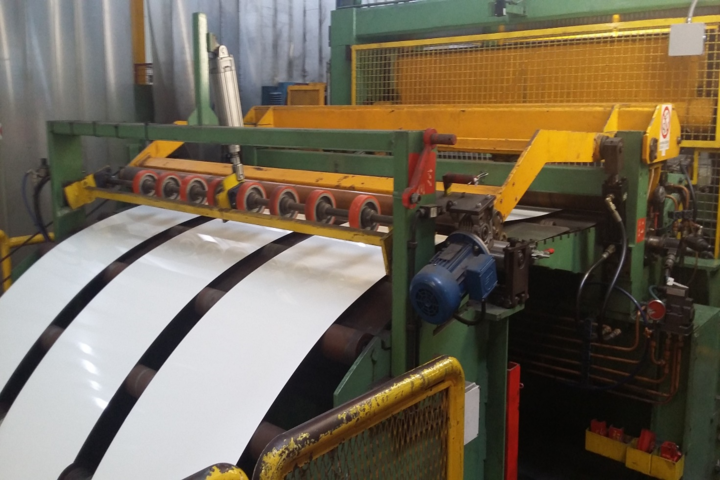

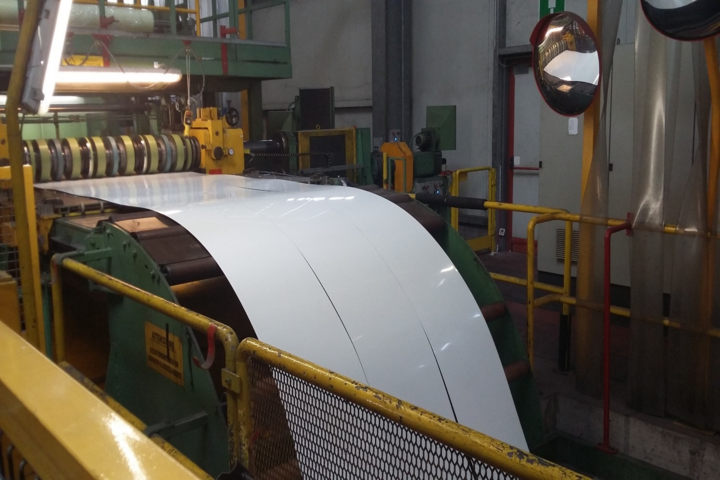

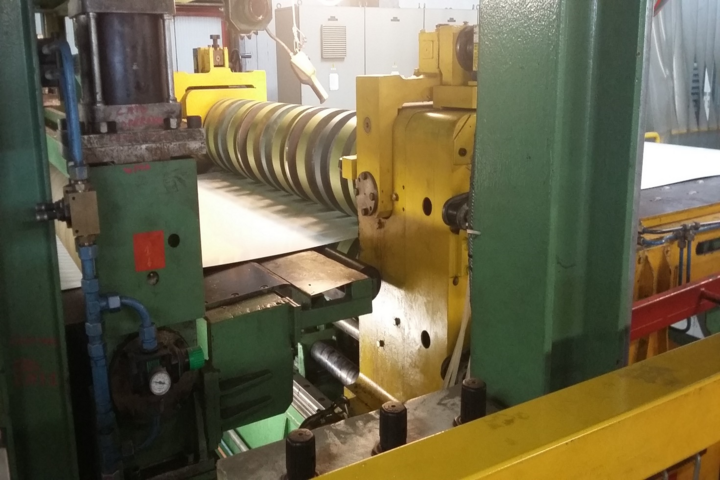

Trimming unit
Thickness min.: 0.3 mm, Max thickness: 2.5 mm, Min. coil width: 50 mm, Max. coil width: 1,850 mm
Edge width min.: 10 mm, Max. edge width: 50 mm, Width tolerance: 0.5 mm, Max diagonal difference: 1 mm
No of possible cuts: 3, edge cutting head: motor power: 39 kW

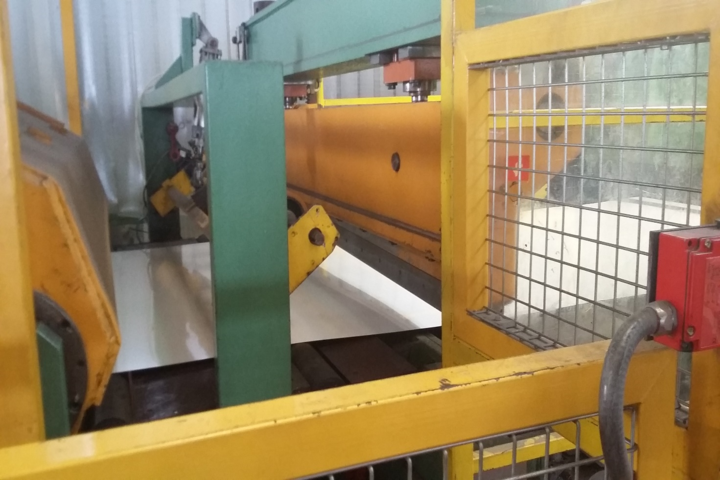

Shear
Mfc.: FIMI, Type: rotary, Min. sheet length: 300 mm, Max. sheet length: 8,000 mm
Tolerance length: +/- 0.25 mm, Max. speed: 120 m/min.
Maximum number of cuts with
Rm = 500 MPa for given length: Minimum length: 133 mm
Length = 500 mm: 150, Length = 1,000 mm: 75, Length = 1,500 mm: 50, Length = 2,000 mm: 38,
Length = 2,500 mm: 30, Length = 3,000 mm: 25, Length = 4,000 mm: 19, Length = 5,000 mm: 15,
Length = 6000 mm: 13
Engine power cutting: 134 kW +134 kW

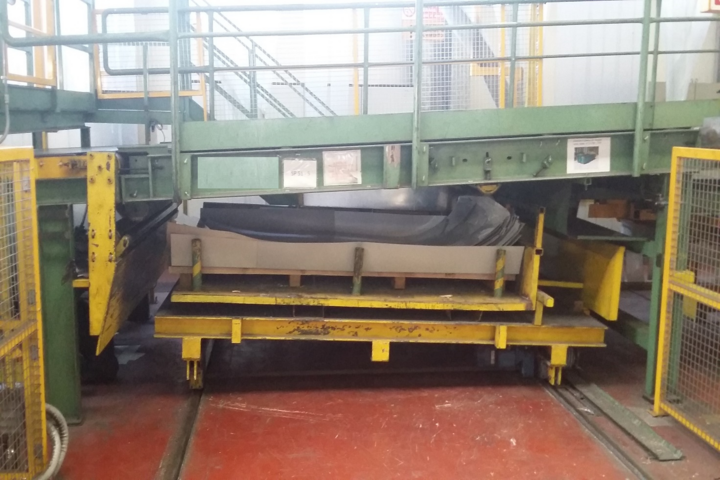

Stacker
Type: Gravitational, Type: Air blades, No. box / counters: 2, Box / counters length: 4,000 mm
Box / counters on chains or rollers chains,
Number of positions for bank in length: 1, Number of positions for bank in width: 1
Max package height (wood included): 560
Possibility to put palets, packaging line, Automatic binding
Packaging line
Automatic system, PLC system: Siemens, Type: S5-115
Workable materials: Cold laminate, Pre-painted, Metallic cover
